OB10

PDF Download

CHASSIS

  • 16.5m long articulated vehicle

  • Twin full-length expanding sides

  • Air-conditioning and roof platform

WEIGHT

  • 32 tonnes

POWER

  • 1x 125 amp 3P (three phase) c-form; or

  • 3x 125 amp 1P (single phase) c-form

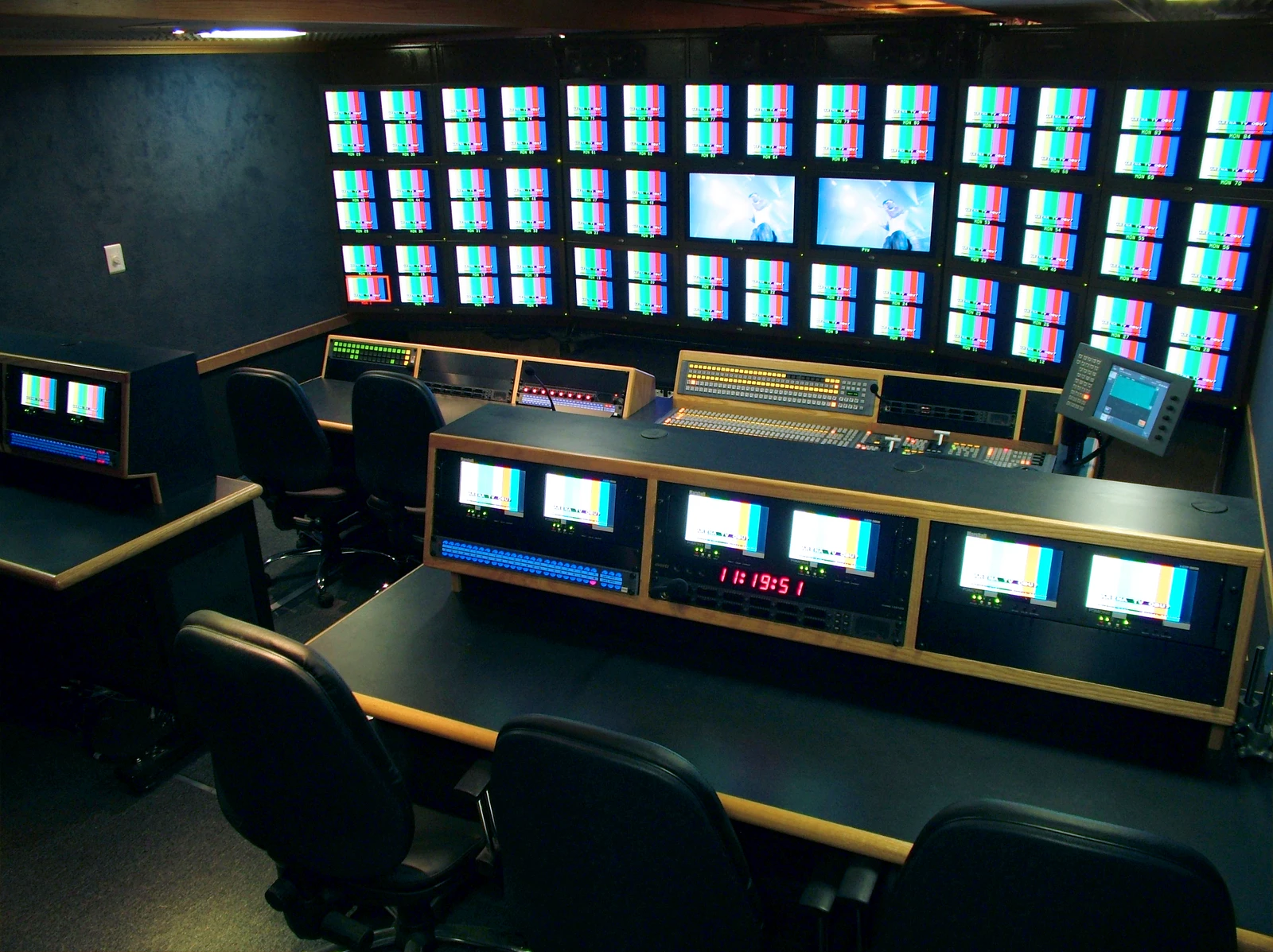

OB7 Production

OB7 Production

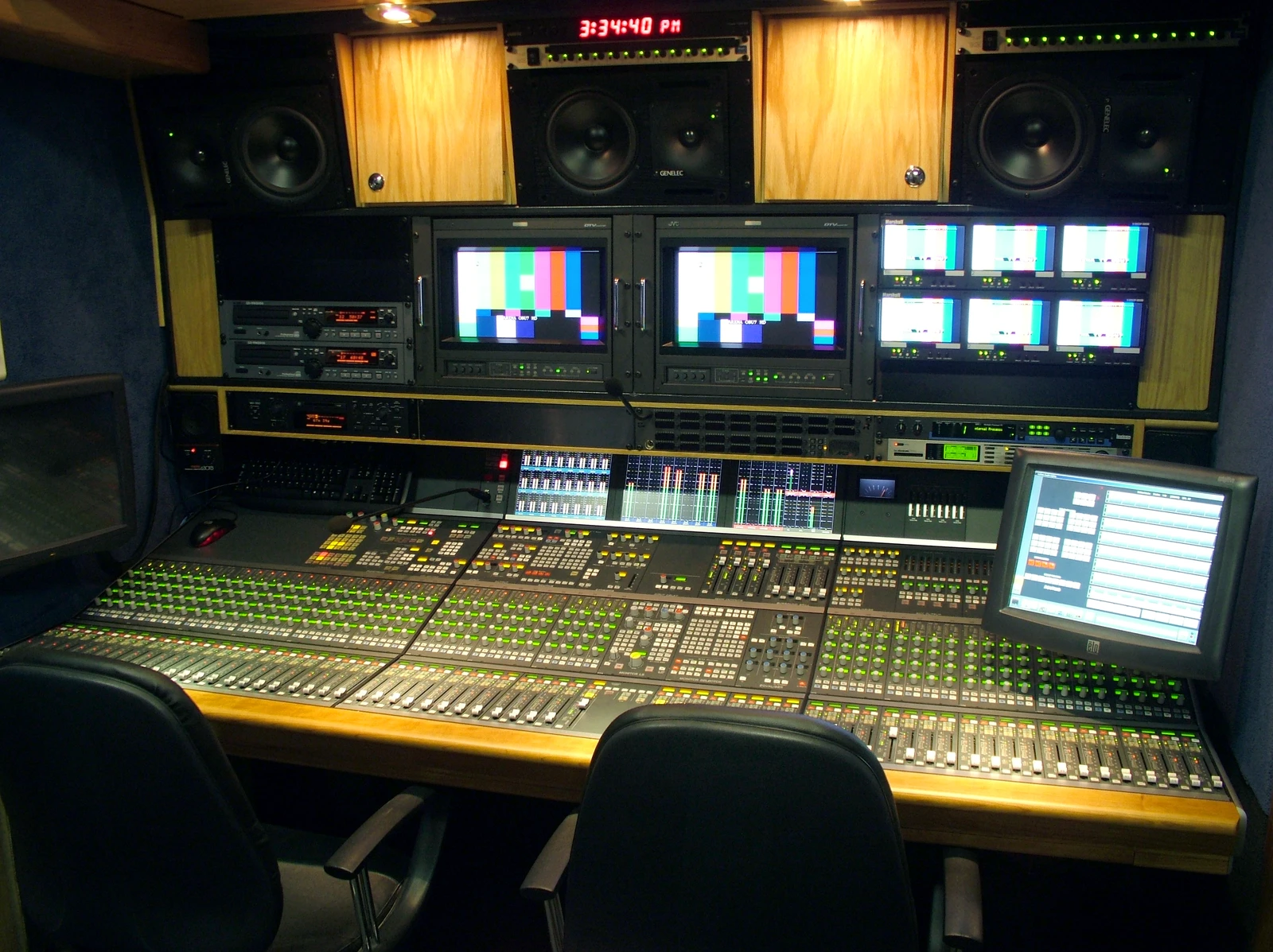

U7 Sound

U7 Sound

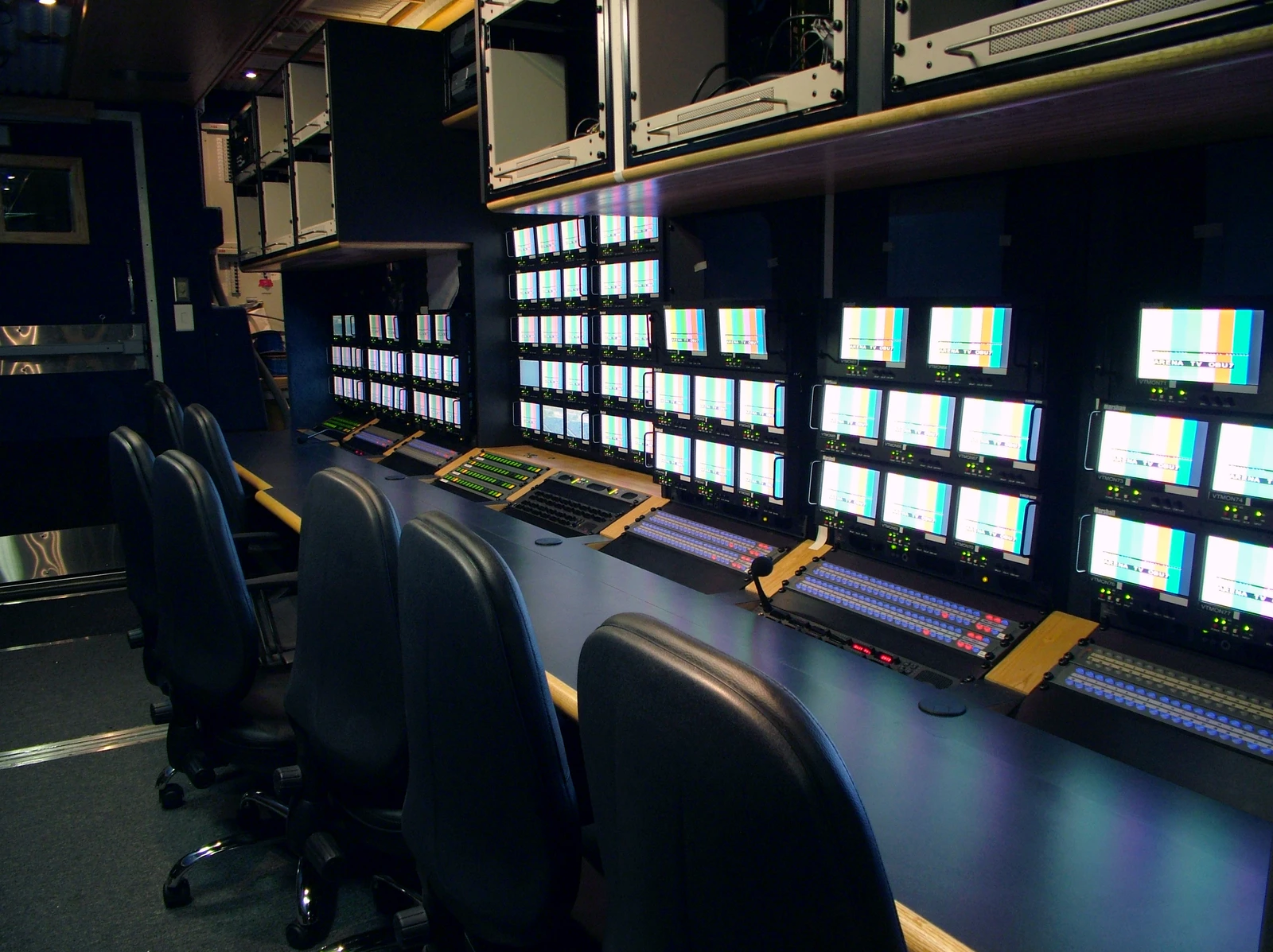

U7 VT

U7 VT

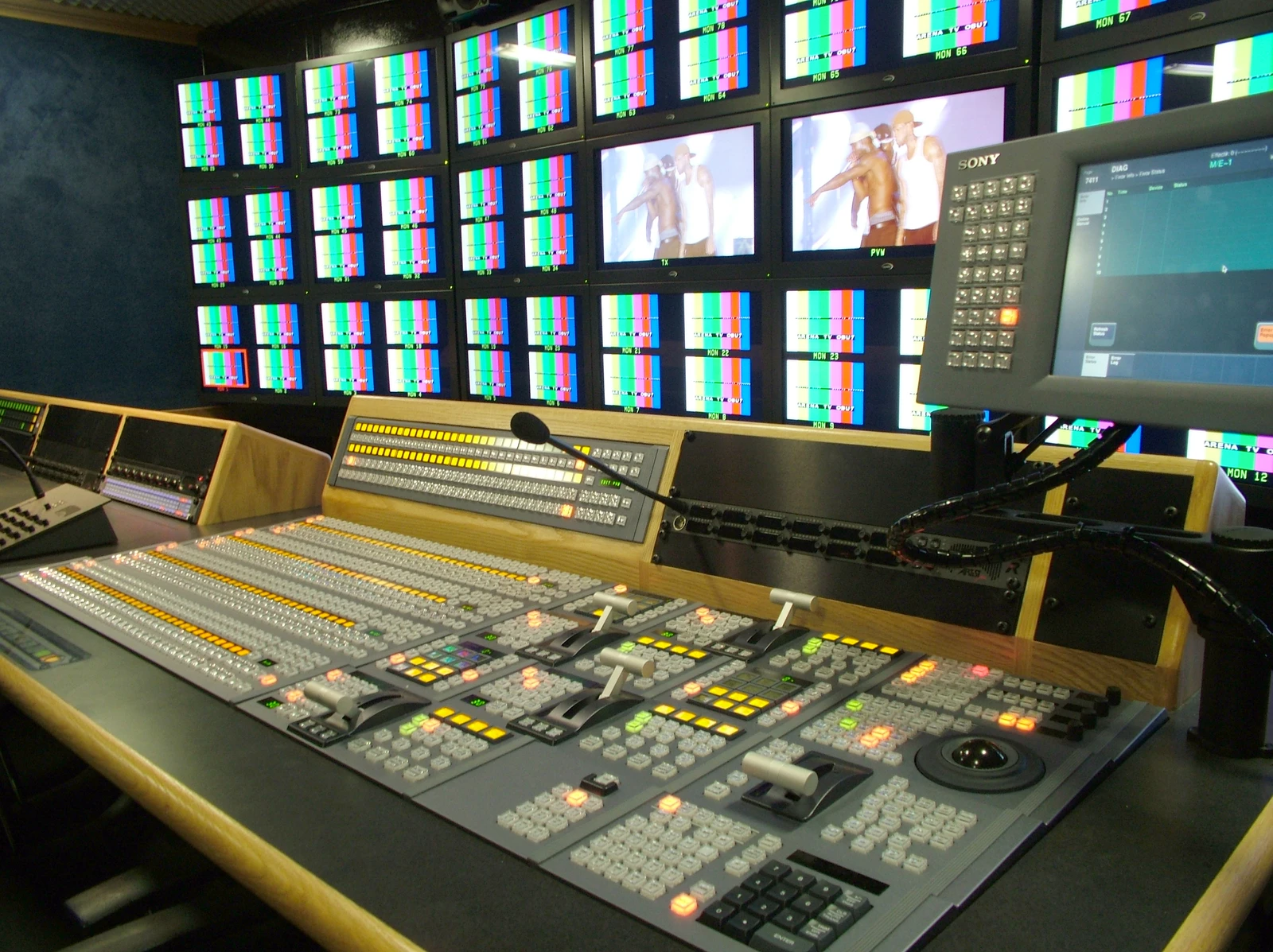

U7 Vision Mixer

U7 Vision Mixer

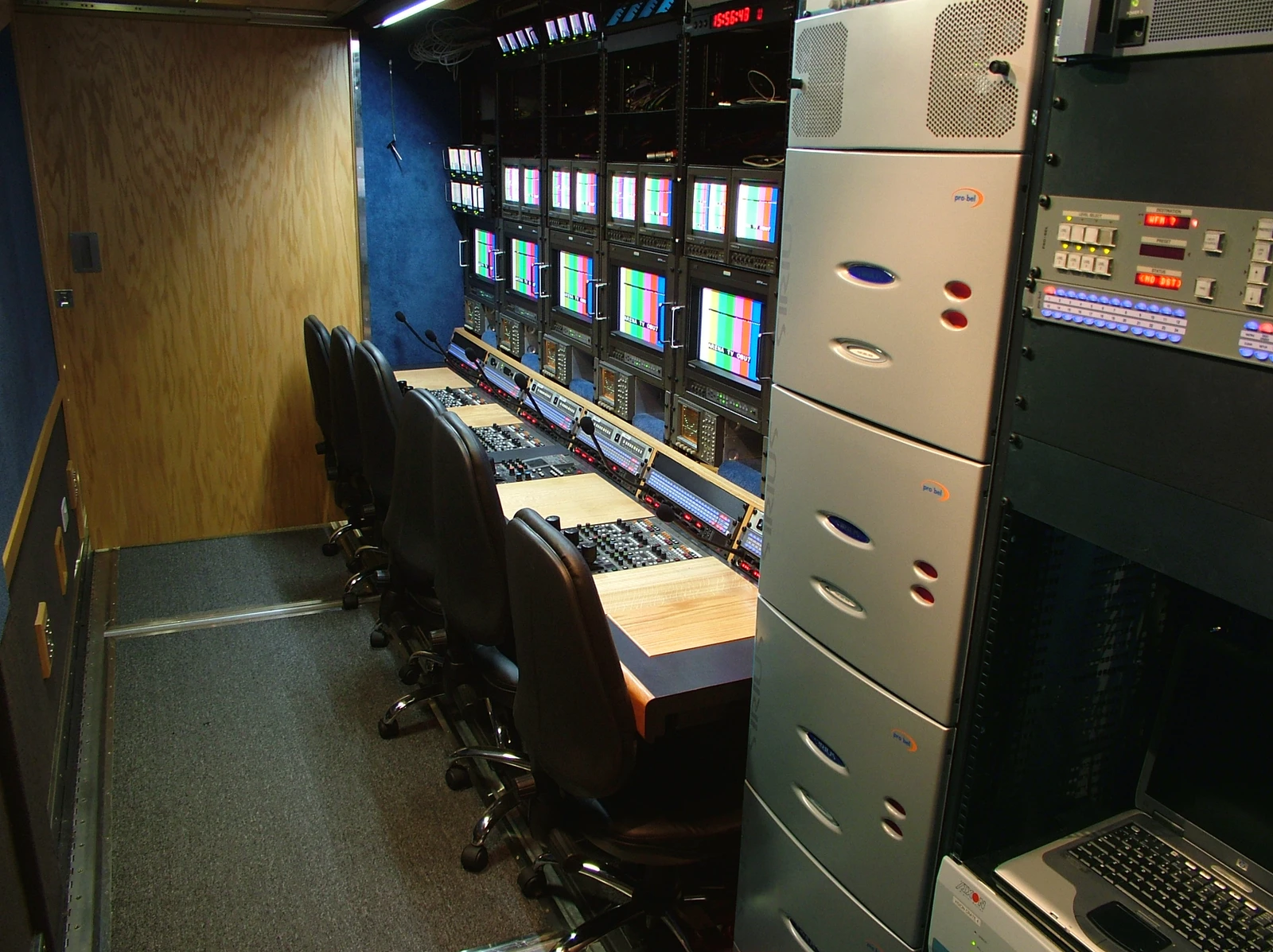

U7 Vision

U7 Vision

OB10 is based upon our popular OB7 design. The unit features much of the equipment that has become popular with clients including a large assignable TFT based monitor stack, Sony MVS8000 vision mixer, Riedel next generation talkback matrix, Probel Sirius Gold router and the new Calrec Sigma bluefin audio mixing desk.

Keeping a popular design.

All our HD trucks are built to the maximum length permissible under European legislation. Both sides fully expand along the whole length of the units, to provide a massive amount of internal space. This is further enhanced by utilisation of flat screen monitoring throughout the truck.

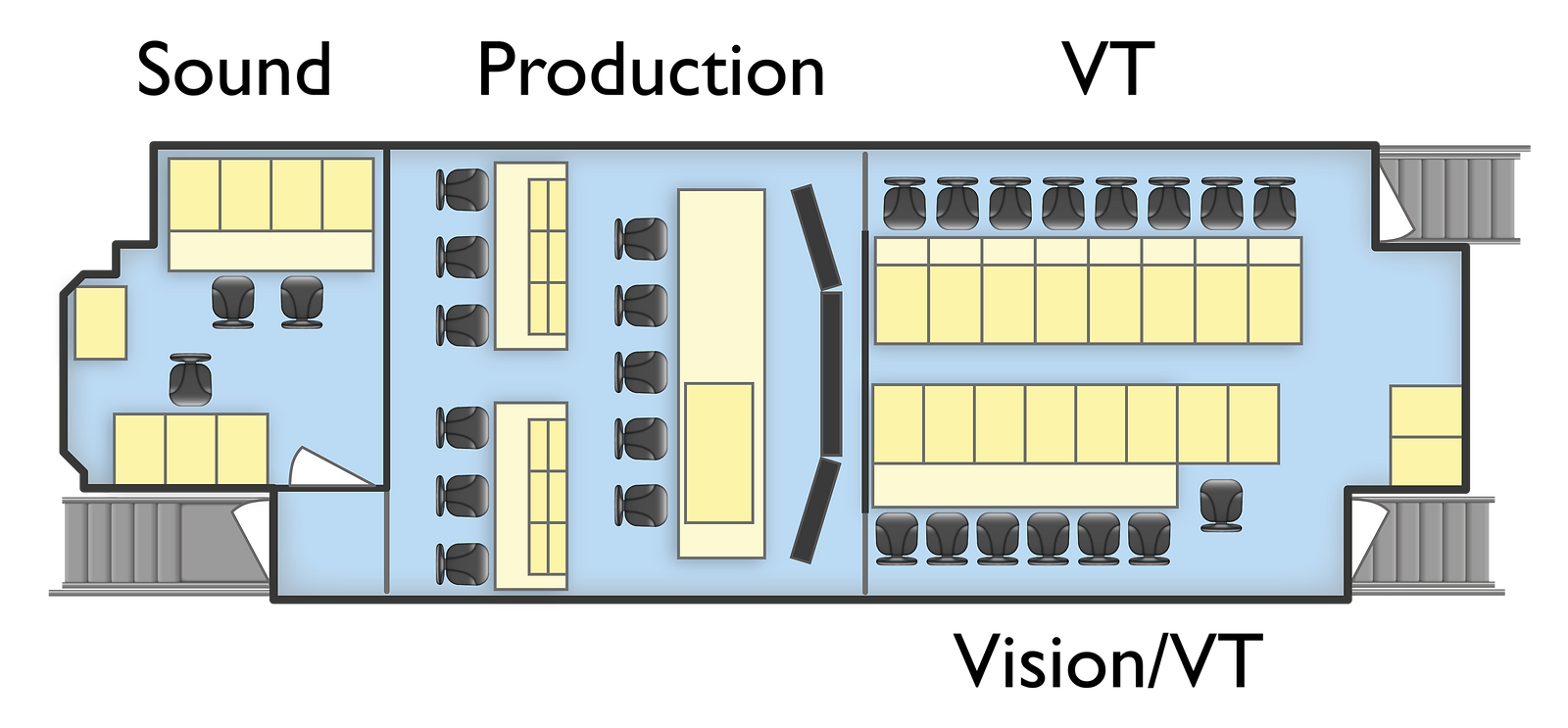

Layout
